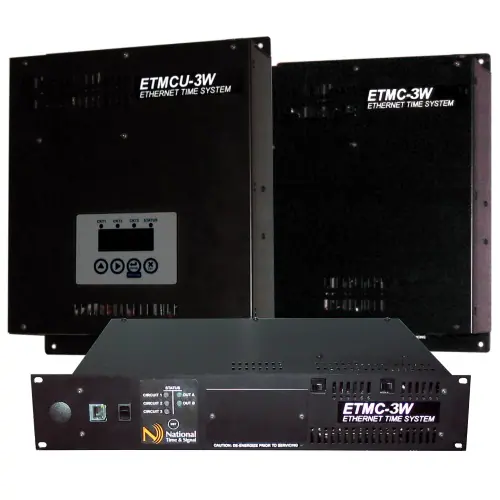

The ET Series Master Clock is an all-in-one master clock solution that receives precise time synchronization from a LAN connection. Just plug the ET Series Master into a standard 120V outlet, connect the LAN, and the integrated Power Supply sends 24VAC out to a low voltage clock system.
Send precise Ethernet Time data throughout your facility using only two wires while consuming only one IP network address. The integrated Power Supply in the ETMC-2W has two 24VAC Power/Data outputs for 2-wire clock circuits, each output can supply 3 Amps. Additional outputs include two Relay outputs for scheduled events (bells, tones, etc.) and a Control Output for Booster Power Supplies. Configuration and event scheduling is performed through a user-friendly web browser interface. Available as 2U rack mount or wall mount.
ETMCU-2W adds a Time Display and User Interface to the master clock and can be used to set the time without a LAN connection. Available as wall mount only.
ET-RPS6-2W Booster Power Supply plugs into a standard 120V outlet and adds two 24VAC Power/Data outputs for 2-wire clock circuits, each output can supply 3 Amps. May be installed locally in the same rack and controlled by the Control Output of the ETMC-2W. May be installed remotely to extend Power/Data circuits. Available as 2U rack mount or wall mount.
Send precise Ethernet Time to your conventional 3-wire clock system using only one IP network address. The integrated Power Supply in the ETMC-3W has Run and Reset outputs for one 3-wire clock circuit, each output can supply 3 Amps. Additionally, there is one Relay output for scheduled events (bells, tones, etc.) and a Control Output for Booster Power Supplies. Configuration and event scheduling is performed through a user-friendly web browser interface. Available as 2U rack mount or wall mount.
ETMCU-3W adds a Time Display and User Interface to the master clock and can be used to set the time without a LAN connection. Available as wall mount only.
ET-RPS6-3W Booster Power Supply plugs into a standard 120V outlet and adds Run and Reset outputs for one 3-wire clock circuit, each output can supply 3 Amps. May be installed locally in the same rack and controlled by the Control Output of the ETMC-3W. May be installed remotely to extend Power/Data circuits. Available as 2U rack mount or wall mount.
