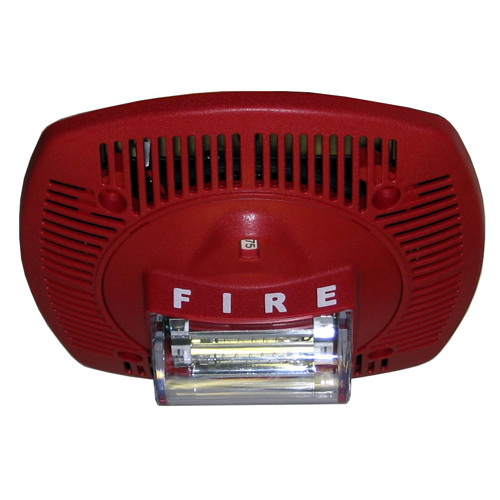

The NATIONAL TIME CXLP Series ceiling mount speaker and CXCLP Series strobe/speaker are designed to meet the code requirements for audio, visual and voice communications.
The CXCLP Series speaker/strobes have been replaced by the CXU Series. This page is being maintained for historical technical information only.
These series ceiling speakers provide 25 and 70.7 VRMS speaker output with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W or 4W The CXCLP Series ceiling strobe provides a low operating current and a minimum flash rate of 1Hz across the rated input voltage range. The CXCLP candela intensity are field selectable in 15CD, 30CD, 75CD, 95CD or 115CD ratings. The strobe component of the CXCLP Series operates from the synchronized outputs on the National Time Synchronized Series, Fire Alarm Control Panel or Notification Appliance Control Panel or from the Remote Power Supply. The CXCLP and CXLP Series appliances are UL 464 and UL 1971 listed for use with fire protective signaling systems.
| Cutsheet | Name/Description |
|---|---|
 462 | CXC Series Ceiling Mount Speaker Strobe |
