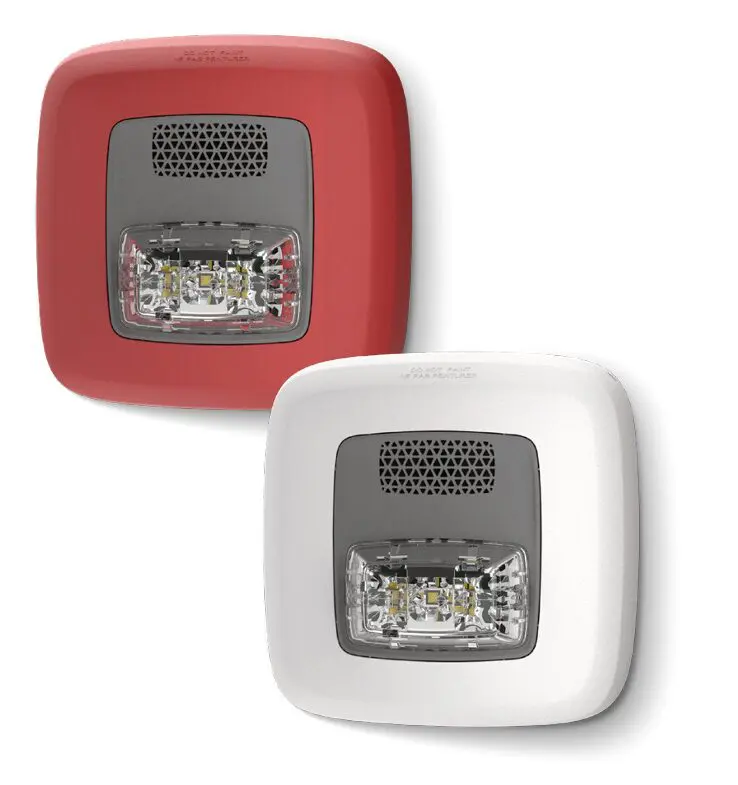

The NATIONAL TIME C5U Series is a universal ceiling and wall mount strobe or horn/strobe combination that offers dependable audible and visual alarms and low current consumption.
The C5U series offers tamperproof field selectable strobe options of 15, 30, 75, 115, 150, and 177 candela. The C5U horn/strobe offers continuous or syncable temporal tones for mechanical, 2400Hz and chime as well as a nonsyncable continuous whoop tone. All tones are easy for the professional to change in the field by using switches.
The included 4” mounting plate incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing. The C5U also features the patented Checkmate® Instant Voltage Verification feature which allows the installer to check the voltage drop draw and match it to the blueprint. Bezels are available in white or red. Bezel text options of Fire, Alert, or plain without text. The C5U devices are listed to ANSI/UL 464, ANSI/UL 1638.
| Cutsheet | Name/Description |
|---|---|
 633 | C5U Series Strobes and Horn/Strobes Datasheet |
