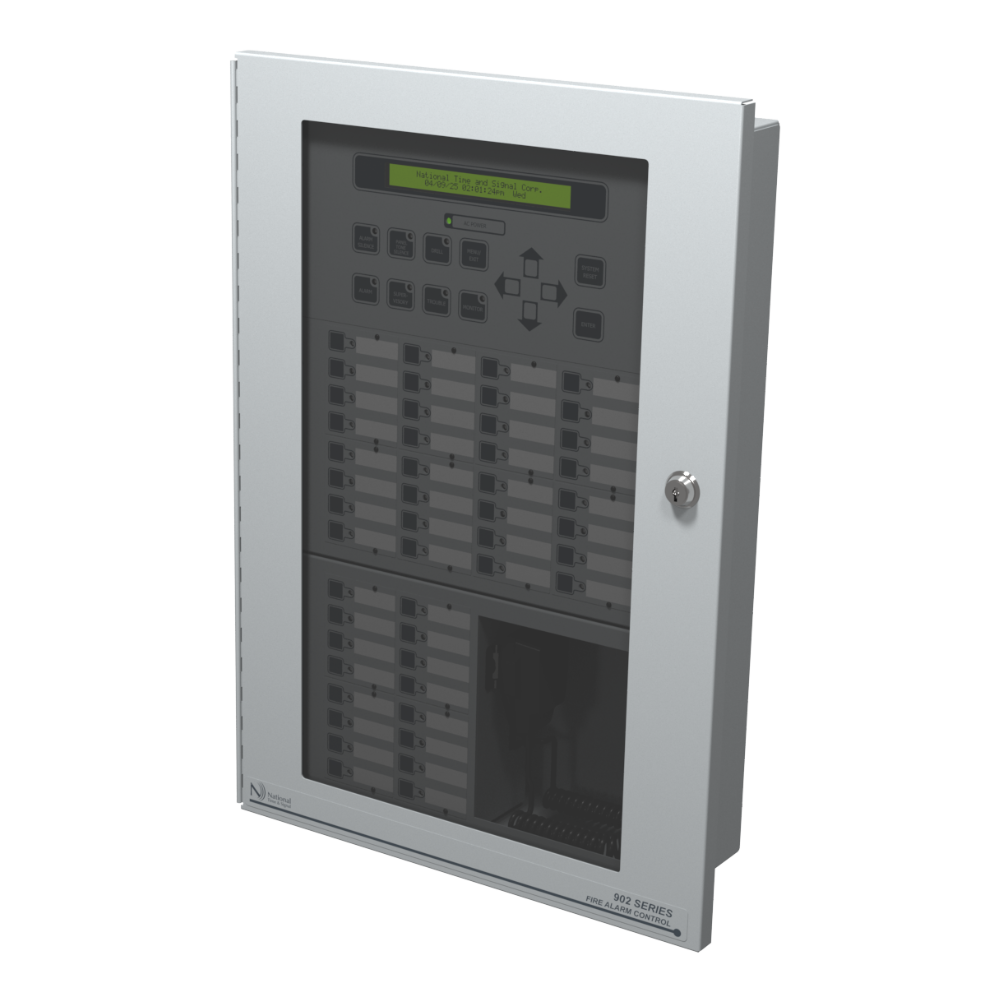

The NATIONAL TIME 902 Series Fire Fighter Control Panel creates an attractive and informative user control panel on any National 900, 901, or 902 FACP installation. The small footprint, low profile cabinet can be located where space may be limited or at additional building entrances where user control is desired. The 902-FFCP does not replace the user control at the fire alarm
panel but creates up to 31 additional user control points on the system.
The 902-FFCP can include a 902-CPU control that provides complete control of the system identical to the main panel. For audio systems, the 902-FFCP can include a remote microphone and zone page control switches. Multi-color LED annunciator points and additional switch control can be added in any combination to satisfy any installation requirement.
Power is supplied by the main panel’s power-limited 24VDC eliminating expensive 120VAC building power drops. The 902-CPU communicates using the system’s RS485 circuit while LED annunciators communicate using the system’s DigiCommTM addressable loop. The remote microphone, if required, communicates using the audio system microphone supervision cable
that is also a power-limited connection eliminating all non-power limited dedicated conduit installation.
For smaller user control, paging, and annunciator installations, see the 902 Fire Alarm Remote
Annunciators (Bulletin F-557).
